Geohex Erosion Control Grid System 1,000 x 500mm x 42mm Panel

Stock Code:

GEOHEX

Brand

GEOHEX Grid System

View

Price:

$31.93 Inc GST

Quantity Breaks

$31.93 Inc GST

170+

$22.99 Inc GST

Stock Locations

Braeside (VIC):

In stock 250+
Mt Barker (SA):

In stock 12+
Wetherill Park (NSW):

In stock 100+

If ordering for pickup, please make sure items are available in local warehouse, wait times will apply for stock transfers.

Make an Enquiry

Add to Favourites

Description

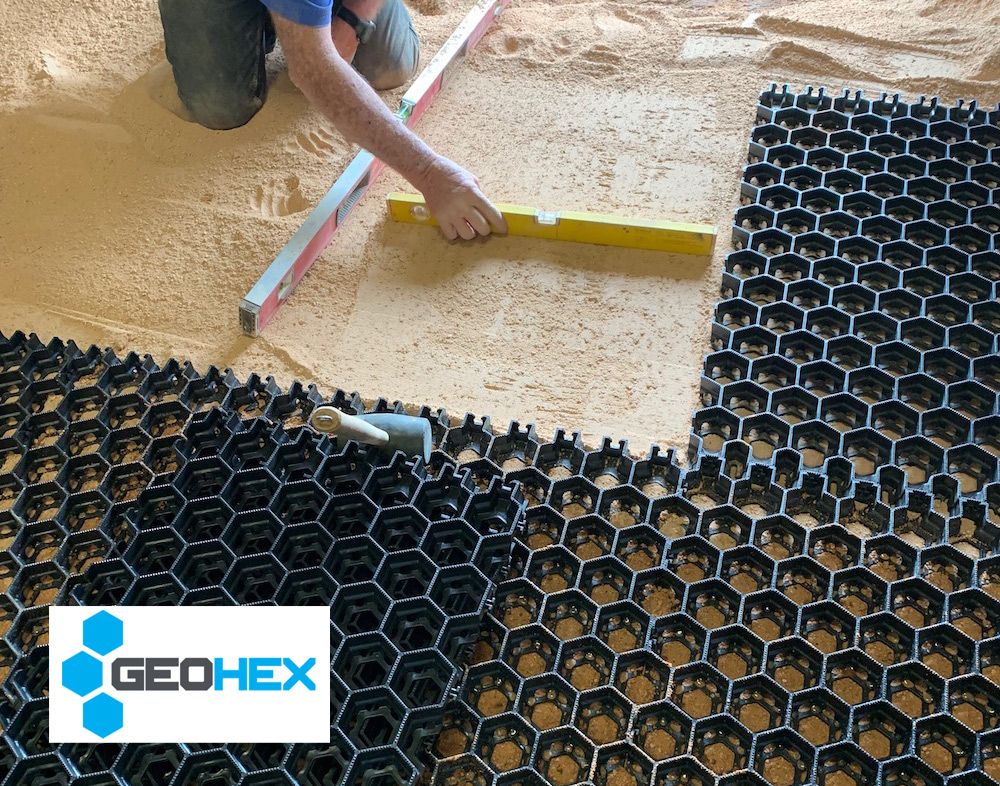

The GEOHEX™ Erosion Control System is an Australian-made plastic turf and substrate stabiliser that has a huge variety of uses across a range of applications and industries. Made from 100% recycled post-consumer plastics, GEOHEX™ is a sustainable and more cost effective substitute to concrete and bitumen-type products.

By increasing the structural integrity of the soil, GEOHEX™ Erosion Control System helps stabilise infill material, mitigates erosion, and controls shearing, lateral and vertical movement in a wide range of soil and substrate types. GEOHEX™ creates a stiffened base layer that provides increased load support whilst preventing soil subsidence and erosion.

Injection moulded using high-impact UV-stabilised Copolymer Polypropylene
Also available: high density Polyethelyne (HOPE) for sub-zero applications
Weight per grid: 2.7kg, dimensions: 1000x500x42mm (2 grid plates = 1 sq.metre)
Temperature range: -45°C to 155°C
Maximum load bearing capacity (filled): 1,200 tonnes per square metre
Inert and non-reactive to solvents, oils, chemicals and water
Can be installed in a variety of soil and geological configurations
Non-toxic to humans, animals or plants
Manufactured in Australia from 100% recycled plastic

Mining, Civil & Earthworks

GEOHEX™ can be used for the stabilisation of roads on mining, civil and earthwork sites as well as drainage stabilisation in hardstands, haul roads and equipment yards. GEOHEX™ can also be used in the stabilisation of mine site embankments, drains and airstrips.

Rural

With its rigid design and a strong impact-resistant polymer construction, GEOHEX™ provides a cost-effective solution that prevents soft ground build up in heavy traffic livestock areas. GEOHEX™ promotes livestock flow and reduces the incidence of lameness around trough and standoff areas, approaches and exits to yards.

Public Infrastructure

GEOHEX™ is ideal for use in pavement and turf stabilisation, stormwater management, drainage, landscape projects, cycleways, beach access areas and housing estates. Other applications include retention of stormwater, stabilisation of turf, paver support and for the reduction of dusty and muddy areas.

For case uses and installation videos visit the GEOHEX YouTube channel:www.youtube.com/@geohex1466
